    2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector Set - 1 2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector Set - 2 2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector Set - 3

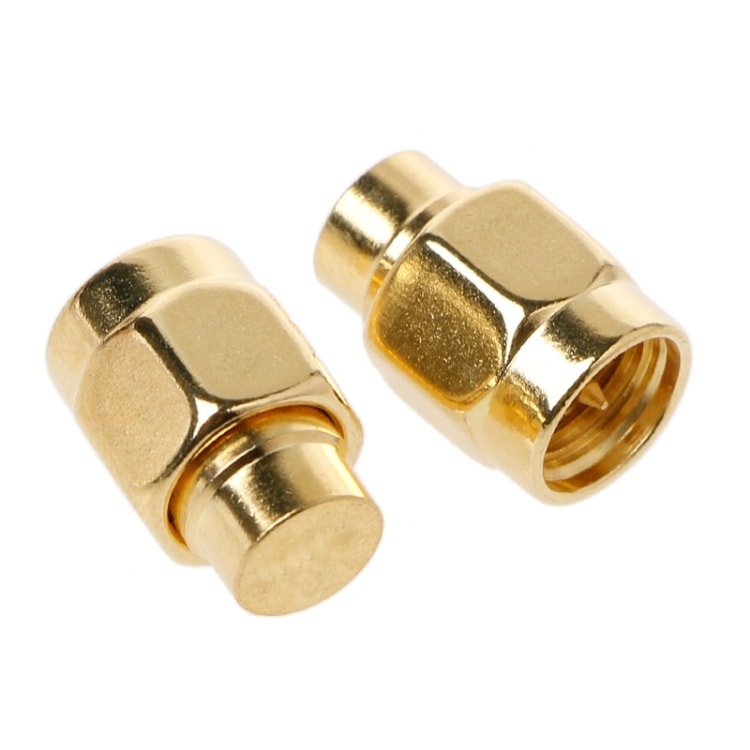

    2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector

    Be the first to review this product
    SKU: 06-0293252
    • Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius)
    • Vibration: Vibration MIL-STD-202, Method 213
    • Characteristic Impedance: Impedance 50ohm
    • Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz)
    • Operating voltage: Working Voltage 335V max (RMS)
    • Pressure: Withstand Voltage 1000V rms (sea level minimum)
    • Contact resistance: Contact resistance
    • Between the inner conductors: Center Contact <= 3M ohm
    $5.27
    $6.27
    Availability: In stock
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features
    • 1. Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius)
    • 2. Vibration: Vibration MIL-STD-202, Method 213
    • 3. Characteristic Impedance: Impedance 50ohm
    • 4. Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz)
    • 5. Operating voltage: Working Voltage 335V max (RMS)
    • 6. Pressure: Withstand Voltage 1000V rms (sea level minimum)
    • 7. Contact resistance: Contact resistance
    • 8. Between the inner conductors: Center Contact <= 3M ohm
    • 9. Outside conductor: Outer Contact <= 2M ohm
    • 10. Insulation resistance: Insulation resistance >= 5000M ohm
    • 11. Insertion loss: <=0.15 dB / 6 GHz
    • 12. Voltage Standing Wave Ratio:
    • - Straight: Straight Soft Cable <=1.10 + 0.002f
    • Semi-Rigid Cable <=1.05 + 0.001f
    • - Curved: Right angle soft cable <=1.20 + 0.003f
    • semi-rigid cable <=1.10 + 0.001f
    • 13. Durability (Dating (mating): >= 500 times (cycles)
    • 14. Size:12x8mm/0.47x0.31
    Packing List
    • 2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector
    • Original set and packaging
