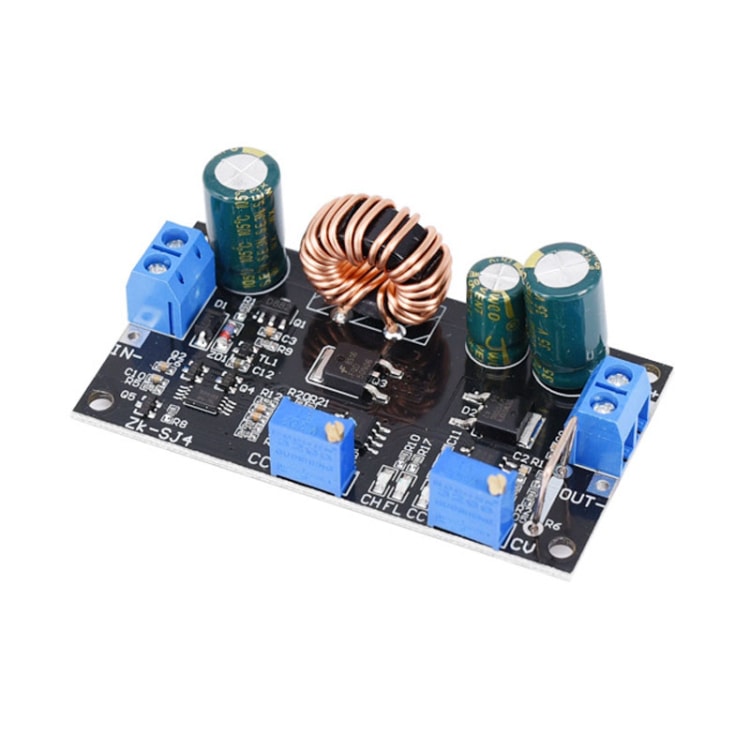

Adjustable Voltage Solar Charging Module Auto Power On Voltage Regulator Accessory

SKU: 06-0108527

The current size can be set for limiting the output current, constant current drive, battery charging
Comes with output anti-backflow function, no need to add anti-backflow diode when charging battery
After undervoltage protection, as long as the input voltage can be restored to start without re-power off, can be restored
Enlarge the heat sink and copper, high power rectifier diode
Usage:
As a general lift module with overcurrent protection ability to use
As a battery charger
As a high-power LED constant current driver module

$7.83

$9.00

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. The current size can be set for limiting the output current, constant current drive, battery charging
2. Comes with output anti-backflow function, no need to add anti-backflow diode when charging battery
3. After undervoltage protection, as long as the input voltage can be restored to start without re-power off, can be restored
4. Enlarge the heat sink and copper, high power rectifier diode
5. Usage:
- As a general lift module with overcurrent protection ability to use
- As a battery charger
- As a high-power LED constant current driver module
6. Note: this module in more than 3A, 35W use, please strengthen the heat dissipation
Parameters:
1. Input voltage: 4.8-30V
2. Output voltage: 0.5-30V
3. Output current: can work stably at 3A for a long time, and can reach 4A under enhanced heat dissipation
4. Output power: 35W with natural heat dissipation, 60W with enhanced heat dissipation
5. Conversion efficiency: 88 percent or so
6. Short circuit protection: yes
7. Operating frequency: 180KHz
8. Size: 68 x 37 x 22mm, mounting hole diameter 3mm
9. Weight: 38.7g

Packing List

Adjustable Voltage Solar Charging Module Auto Power On Voltage Regulator Accessory
Original set and packaging
