BSIDE SH7 Standard Thermal Imager Multimeter Handheld Touch Screen High Accuracy Thermometer

Be the first to review this product

SKU: 06-0305720

Thermal image resolution: 240 x 240 pixels
Temperature alarm: screen font color alarm
Number of image files: 30,000
Save image format: BMP
Interface: Type-C
Imaging mode: thermal imaging
Image storage: built-in memory card
Battery capacity: 2500mAh

$221.79

$270.58

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

1. Thermal image resolution: 240 x 240 pixels
2. Temperature alarm: screen font color alarm
3. Number of image files: 30,000
4. Save image format: BMP
5. Interface: Type-C
6. Imaging mode: thermal imaging
7. Image storage: built-in memory card
8. Battery capacity: 2500mAh
9. Charging time: about 3h
10. Use time: about 7h
11. Display resolution: 320 x 480
12. Temperature measurement focal length: about 0.3-3m adjustable
13. Temperature measurement range: -20 - 550 degrees Celsius
14. Emissivity: 0.01-1.00 adjustable
15. Temperature measurement resolution: 0.1 degrees Celsius
16. Temperature measurement unit: Celsius, Fahrenheit, Kelvin
17. Temperature measurement display: center point temperature measurement, high and low temperature tracking
18. Spatial resolution: 8.89 mrad
19. Frame rate: 25Hz
20. Imaging lens focal length: 1.35 mm
21. Field of view: 50 degrees
22. Display: 3.98-inch TFT LCD screen/with capacitive touch
23. Functions: data statistics, adjustable backlight brightness, low battery prompt, automatic shutdown
24. Color palette: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue
25. Size: about 16.9 x 8.1 x 2.68cm
26. Weight: about 270.7g
Features:
1. Gear toggle button, switch and adjust at will
2. Anti-fall double injection silicone housing, effective anti-fall
3. Thermal imaging capacitive touch, 20,000 word multimeter, efficient two-in-one
4. 3.98-inch capacitive touch screen, 240 x 240 thermal image resolution
5. Touch LED large screen, clearer display, more convenient operation
6. High thermal sensitivity core vanadium oxide (Vox) microbolometer
7. Able to detect the temperature of the surface of the object, adjust the ambient temperature, distance and emissivity to read the temperature more accurately
8. 15 pseudo-color modes

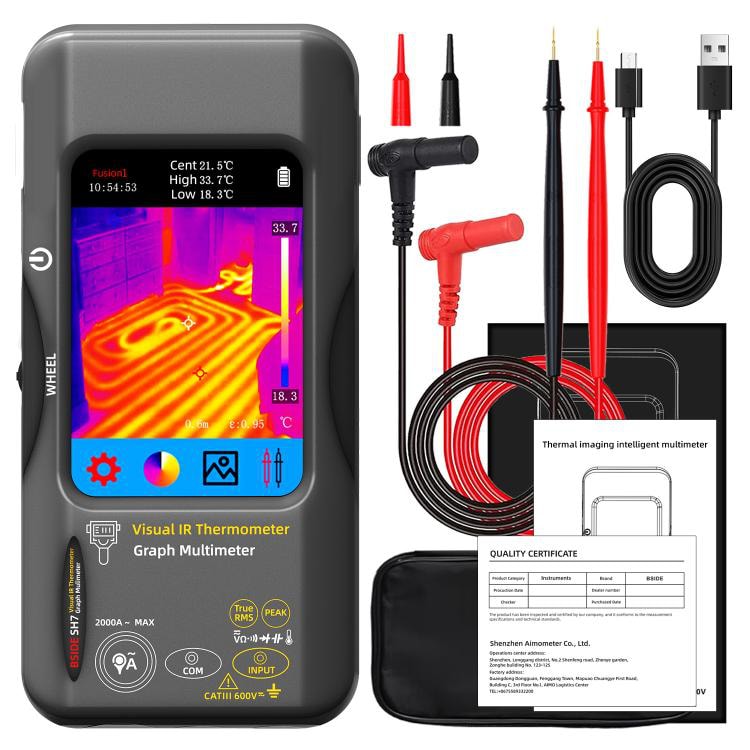

Standard packaging list:
- Multimeter x 1
- USB data cable x 1
- Manual x 1
- Packing box x 1
- Test pens x 2
- Pen caps x 2

Packing List

BSIDE SH7 Standard Thermal Imager Multimeter Handheld Touch Screen High Accuracy Thermometer
Original set and packaging
