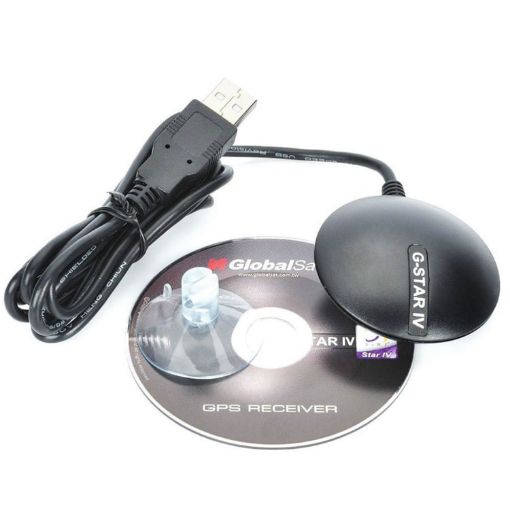

BU-353N5 USB Interface G Mouse GPS Receiver SiRF Star IV Module (Black)

Be the first to review this product

SKU: 06-0155363

The BU-353N5 is a USB GPS receiver that features a highly sensitive, low power consumption chipset in a ultra compact form factor. The BU-353N5 is powered by a SiRF Star IV GPS chipset, and will provide you with superior performance in urban canyons, and in dense foliage. With the SiRF CGEE (Client Generated Extended Ephemeris) technology, has the capability of predicting satellite positions for up to 3 days in advance,and will deliver a CGEE-start time of less than 15 seconds under most conditions without any network assistance. The BU-353N5 MicroPower mode allows the receiver to stay in a hot start-like condition almost continuously while consuming very little power.
SiRF Star IV high performance GPS Chipset
Highly sensitive (Tracking Sensitivity: -163 dBm)
Extremely fast TTFF (Time To First Fix) at low signal level
Support NMEA 0183 data protocol
Built-in SuperCap to reserve system data for rapid satellite acquisition
Built-in patch antenna and magnetic pad
Super-cohesive magnetic for mounting on the car

$40.05

$47.26

Availability: Out of stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

About The Product
The BU-353N5 is a USB GPS receiver that features a highly sensitive, low power consumption chipset in a ultra compact form factor. The BU-353N5 is powered by a SiRF Star IV GPS chipset, and will provide you with superior performance in urban canyons, and in dense foliage. With the SiRF CGEE (Client Generated Extended Ephemeris) technology, has the capability of predicting satellite positions for up to 3 days in advance,and will deliver a CGEE-start time of less than 15 seconds under most conditions without any network assistance. The BU-353N5 MicroPower mode allows the receiver to stay in a hot start-like condition almost continuously while consuming very little power.
Features
1. SiRF Star IV high performance GPS Chipset
2. Highly sensitive (Tracking Sensitivity: -163 dBm)
3. Extremely fast TTFF (Time To First Fix) at low signal level
4. Support NMEA 0183 data protocol
5. Built-in SuperCap to reserve system data for rapid satellite acquisition
6. Built-in patch antenna and magnetic pad
7. Super-cohesive magnetic for mounting on the car
8. Waterproof and non-slip on the bottom
9. LED indocator for GPS
Specifications
1. Chipset: SiRF Star IV
2. Frequency: L1 1575.42MHz
3. C / A code: 1.023 MHz chip rate
4. Number of Channels: 48 channels tracking
5. Sensitivity: -163dBm
Accuracy
1. Location: 10 meters, 2D RMS
2. 5 meters, 2D RMS, WAAS enable
3. Rate: 0.1 m/s
4. Time: 1 microsecond synchronized satellite
Other Characters
1. Coordinate information:
- Default: WGS-84
2. Acquisition Time:
- Readmission: Average 0.1 seconds
- Hot Start: Average 1 seconds
- Warm start: 38 sec average
- Cold and warm start: 42 sec average
3. Related restrictions:
- Height: 18,000 m (60,000 ft) maximum
- Rate: 515 m / sec (10,000 knots) maximum
- Gravity: Less than 4G
4. Power:
- Main power input: 4.5V ~ 6.5V DC input
- Power consumption: 80mA
5. Agreement:
- Operational level: TTL level
- Output Voltage: 0V ~ 2.85V
- Transfer rate: 4,800 bps
- Output format: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL
6. Physical Characteristics:
- Size: 53mm diameter, 19.2mm height
- Cable length: 1.5 m
- Operating temperature: -40 degree C to +85 degree C

Packing List

BU-353N5 USB Interface G Mouse GPS Receiver SiRF Star IV Module (Black)
Original set and packaging
