DIY Parts & Components
Waveshare Micro SD (TF) Storage Board Module
- Micro SD card slot
- Support SDIO and SPI interfaces
- 2.54mm pitch pinheaders
$8.97
$10.76
Waveshare W25QXX DataFlash Board
- Serial DataFlash Module with W25Q128JV Onboard, SPI Interface
- Overview
- Onboard serial NOR Flash memory W25Q128JV
- Support Standard/Dual/Quad SPI
- Support STM32F7 series Quad-SPI interface, provides related cube library demo
- Capacity: 128M-bit / 16M-byte
- Max frequency: =<133MHz
- Operating voltage: 2.7~3.6V
$11.54
$13.50

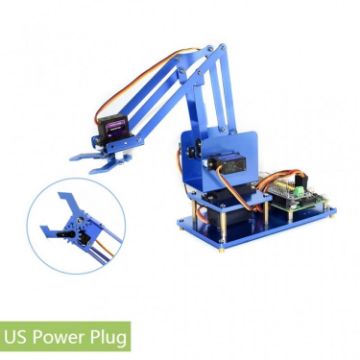

Waveshare 4-DOF Metal Robot Arm Kit for Raspberry Pi, Bluetooth/WiFi Remote Control, US Plug
- Overview
- Equip your Raspberry Pi with this 4-DOF metal robot arm, and get started to explore the world of artificial intelligent robotic.
- This starter robotic arm kit includes: servo driver HAT, metal mechanical arm structure, and 4x metal gear servos. When used with the Raspberry Pi, it is easy to control the arm by smart phone through Bluetooth or WiFi connection.
- The Servo Driver
- Adopts Servo Driver HAT:
- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, Jetson Nano
- I2C controlled, using only 2 pins
- Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
$56.19
$67.99
Waveshare Hall Sensor
- Overview
- 49E hall sensor
- Features wide range voltage comparator LM393
- Adjustable sensitivity
- Signal output indicator
- Power: 2.3V ~ 5.3V
- Dimension: 27.0mm * 15.5mm
- Mounting holes size: 2.0mm
$7.77
$9.25
Waveshare Sensors Pack
- MQ-5 Gas Sensor: Sensitive for LPG, natural gas, coal gas, application for gas leakage detector
- Color Sensor: Detects static color, application for sorting by color, color matching
- Flame Sensor: Sensitive to flame spectrum, application for fire detection, fire fighting robot, fire alarm
- Hall Sensor: 49E hall sensor, application for motor speed measurement, object position detection
- Infrared Reflective Sensor: Reflective infrared transceiver, application for robot path tracking, obstacle-avoiding car, pipeline counter
- Laser Sensor: Laser sensor, application forobstacle detection, pipeline counter, smart robot
- Moisture Sensor: Fork-like soil moisture sensor, application for auto watering system, flowerpot soil moisture detection
- Rotation Sensor: Detects clockwise/anti-clockwise rotations, application for positioning in Industrial Controls
$42.61
$49.85
Waveshare Color Sensor 9520 Board Module
- Overview
- Sensor Chip: TCS3200 (RGB color detector)
- Detects static color, the output is a square wave with frequency directly proportional to incident light intensity
- Supports fill-light by onboard LEDs
- Power: 2.7V ~ 5.5V
- Ideal detection distance: 10mm
- Dimension: 36.0mm * 20.6mm
- Mounting holes size: 2.0mm
$16.15
$19.86
Waveshare PCIe X1 to PCIe X16 Expander, Using With M.2 to PCIe 4-Ch Expander, 24003
- For M.2 M interface to PCIe ports: M2-PCIe-Switch-4P Supports 1-Ch M.2 M To 4-Ch PCIe X1 (Note: the output are PCIeX1 ports, not the USB ports); PCIe-X1-TO-PCIe-X16-Cable supports PCIe X1 To PCIe X16
- Reinforcement design, better protection
- Multi-layer circuit boards for lossless transmission
- Neat interface layout: Can effectively reduce interface interference and ensure stable data transmission
- Expand To 4-Ch PCIe port: Suitable for application scenarios that require multiple PCIe ports at the same time
- M2-PCIe-Switch-4P
- Transfer interface: PCIe X1 female port x 4, M.2 Mkey male port x 1
- Operating system: Windows / linux
$11.40
$13.68
Waveshare 2D Codes Scanner Module Supports 4mil High-density Barcode Scanning,23962
- Barcode scanning module (B) is a barcode / 2D code scanning module, which can quickly and accurately decode 1D or 2D codes on paper or screen through intelligent image recognition algorithm.
- Support multiple barcode formats and 4mil high density barcode scanning.
- On-board USB and UART interface, which can be directly plugged into a computer or easily integrated into various embedded devices.
- Resolution: 640 x 480
- Scanning angle: pitch +/-65 degrees, skew +/-65 degrees, roll 360 degrees
- Scanning mode: sensing, continuous, manual (default)
- Precision: greater than or equal to 4 million
- Communication interface: USB keyboard mode (default), USB virtual port, UART port
$46.52
$57.68
Waveshare 8 Inch 2K IPS 15362048 Optical Bonding Toughened Glass Panel Touch Display, Plug:EU Plug
- Features: high resolution, multi-touch, full color, built-in speakers, high compatibility
- Display size: 8 inches
- Resolution: 2K
- Pixel: 15362048
- Audio interface: 3.5mm
- Touch: 10 points (MAX)
- Built-in ferrite Hi-Fi speaker, support dual-channel
- Tempered glass panel with a hardness of up to 6H, anti-fall and durable
$115.67
$136.49
Waveshare 8 Inch 2K IPS 15362048 Optical Bonding Toughened Glass Panel Touch Display, Plug:US Plug
- Features: high resolution, multi-touch, full color, built-in speakers, high compatibility
- Display size: 8 inches
- Resolution: 2K
- Pixel: 15362048
- Audio interface: 3.5mm
- Touch: 10 points (MAX)
- Built-in ferrite Hi-Fi speaker, support dual-channel
- Tempered glass panel with a hardness of up to 6H, anti-fall and durable
$116.30
$143.05

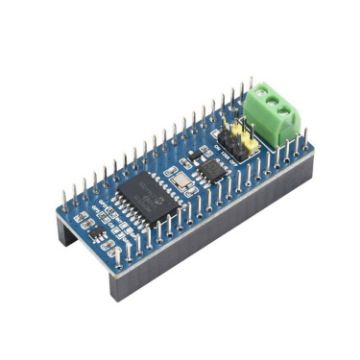

Waveshare For Raspberry Pi Pico CAN Bus Module (B),Enabling Long Range Communication Through SPI,23775
- Suitable for Raspberry Pi Pico and other devices to achieve reliable remote communication
- Standard Raspberry Pi Pico header supports Raspberry Pi Pico series boards.
- Features CAN function, adopts SPL interface CAN controller MCP2515 with transceiver SIT65HVD230DR
- Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPvthon examples)l
- Operating voltage: 3.3V-5V
- CAN controller: RMCP2515
- CAN transceiver: SIT65HVD230DR
- Communication bus: SPI
$19.79
$22.76

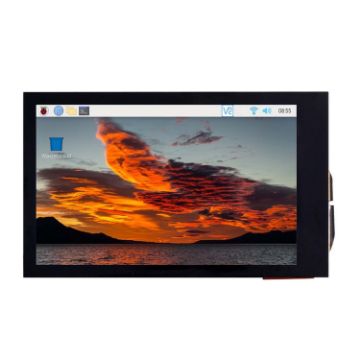

Waveshare 3.5inch 480x800 IPS Capacitive Touch LCD Display For Raspberry Pi ,HDMI Interface
- 3.5-inch IPS display, hardware resolution 480 x 800
- 5-point capacitive touch, 170 degrees wide viewing angle, excellent display performance
- Optical lamination touch technology, better use
- Support Raspberry Pi OS/Ubuntu/Kali/WIN10 loT/Retropie, driver-free
- Interface: HD-MI interface, USB Type-C interface
- Size: 88.87 x 52.56mm
- Weight: 0.159 kg
$51.95
$61.82
