DIY Parts & Components
Yahboom MCU RCT6 Development Board STM32 Experimental Board ARM System Core Board, Specification: STM32F103RCT6
- STM32F103C8T6: It is a model with a high market share in the single-chip microcomputer market, and is widely used in electronic design competitions, smart cars, robots, flight control, industrial control and other fields
- GD32F103C8T6: It is a domestic alternative to STM32F103C8T6. The peripheral pins are exactly the same as 3. STM32F103C8T6. It is equipped with a new generation of Cortex M3 core, with higher CPU frequency, lower power consumption and higher cost performance.
- STM32F103RCT6: Contains all the pins of STM32F103C8T6 and some other peripheral pins, which can directly use the STM32 large-capacity standard library
- APM32E103RET6 is a domestic alternative to STM32F103RCT6. It has a higher main frequency clock and lower operating power consumption. The built-in flash is 2 times that of RCT6, and the SRAM is 2.7 times that of RCT6. It is more cost-effective
- The board is equipped with STM32 small system circuit, among which STM32F103RCT6 and APM32E103RET6 are also equipped with a 6-axis IMU on board, which can be used to obtain motion attitude
- The core board leads to all 1/0 port resources
- With SWD simulation debugging download interface, compared with traditional JTAG debugging, it is more reliable in high-speed mode, and the probability of download failure is smaller
- Immersion gold technology, small size, reasonable and standardized layout and routing, high-quality SMD crystal oscillator, high quality
$13.16 $15.27
4615 Lead- Acid Lithium Battery Universal LED Voltage And Electricity Display Board
- Working current: less than 10mA
- Display mode: LED indicator
- Refresh speed: 500ms/time
- Operating voltage: DC5V-30V
- Adopt international standard size, easy to install
- The first time the product is powered on, the default voltage is 3 series of lithium ternary batteries
- In the normal display state, such as no operation within 10 seconds of the key, the product automatically shut down the display and enter the low-power, you can also manually short press the key to turn off the display into the low-power
- When the product is off, short press the button to turn on and display the power consumption
$5.51 $6.45
Waveshare ESP32-S3 4.3inch 800480 Touch LCD Development Board With Case
- Equipped with high-performance Xtensa32-bit LX7 dual-core processor, the main frequency is up to 240MHz
- Support 2.4 GHz Wi-Fi (802.11b/g/n) and Bluetooth5 (LE), onboard antenna
- Built-in 512 KB SRAM and 384 B ROM, stacked 16 MB Flash and 8MB PSRAM
- Onboard 4.3-inch LCD capacitive touch screen, 800480 resolution, 65K color
- Support I2C interface to control capacitive touch, 5-point touch, support interruption
- Onboard voltage regulator chip, support 7-36V wide voltage power supply
- Onboard RTC chip and rechargeable battery to achieve power-off time without loss
- Onboard CAN, RS485, I2C interface, Micro SD card holder, GH1.25 2P battery interface and digital quantity isolation IO and other resources
$53.55 $61.58
Waveshare 13.3inch 960680 Pixels SPI Communication E-Ink Display, Spec: Nude Screen Version
- No backlight is required, and the display content of the last screen can be maintained for a long time when the power is off
- The power consumption is very low, and basically only consumes power when refreshing
- Provide a complete supporting data manual (driver board schematic, Raspberry Pi/Jetson Nano/RDKX3/Arduino/STM32 and other sample programs)
- Bare screen version working voltage: 3.3V
- Screen size: 286.32 x 212.26 x 1.20mm
- Display size: 275.52 x 195.16mm
- Dot pitch: 0.287 x 0.287mm
- Resolution: 960 x 680 pixels
$219.62 $267.94
Waveshare 13.3inch 960680 Pixels SPI Communication E-Ink Display, Spec: Module Version
- Based on Raspberry Pi4 OPIN GPIO interface design, suitable for Raspberry Pi series motherboards, Jetson Nano, RDKX3
- Reserved SPI control interface, can be connected to Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32 and other main control boards
- Onboard level conversion chip, compatible with 3.3V and 5V microcontroller interfaces
- Module version working voltage: 3.3V/5V
- Communication interface: 3-vire SPI, 4-wire SPI
- Screen size: 286.32 x 212.26 x 1.20mm
- Display size: 275.52 x 195.16mm
- Dot pitch: 0.287 x 0.287mm
$211.18 $244.97
Waveshare 25118 RoArm-M2-S Desktop Robotic Arm Kit, Based On ESP32, 4-DOF (UK Plug)
- Number of degrees of freedom: 4
- Workspace: horizontal diameter 1090mm (Max, 360 degrees omnidirectional), vertical range 798mm (Max)
- Working voltage: standard 12V 5A power supply, can be powered by 3S lithium battery pack
- Load capacity: [email protected]
- Repeat positioning accuracy: about +/-4mm (same load)
- Drive rotation speed: 40rpm (no load, no torque limit)
- Working range: BASE-360 degrees, SHOULDER-180 degrees, ELBOW-180 degrees, HAND-135 degrees/270 degrees
- Drive mode: TTL bus servo servo (TTL BUS SERVO), joint direct drive
$220.13 $253.15
Waveshare 25118 RoArm-M2-S Desktop Robotic Arm Kit, Based On ESP32, 4-DOF (EU Plug)
- Number of degrees of freedom: 4
- Workspace: horizontal diameter 1090mm (Max, 360 degrees omnidirectional), vertical range 798mm (Max)
- Working voltage: standard 12V 5A power supply, can be powered by 3S lithium battery pack
- Load capacity: [email protected]
- Repeat positioning accuracy: about +/-4mm (same load)
- Drive rotation speed: 40rpm (no load, no torque limit)
- Working range: BASE-360 degrees, SHOULDER-180 degrees, ELBOW-180 degrees, HAND-135 degrees/270 degrees
- Drive mode: TTL bus servo servo (TTL BUS SERVO), joint direct drive
$220.13 $275.16

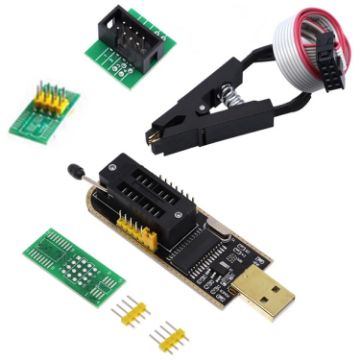

CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool
- Product features:
- Adopts FT232BL chip with external EEPRON (93C46)
- Support Windows 10
- Support 3 power supply modes: 5V external power supply, 3.3V external power supply, external power supply (requires 3.3V-5V)
- With 3 LEDs: TXD LED, RXD LED, POWER LED
- GND, RXD, TXD, 3V3, 5V: using a curved pin pin out
- The rest of the function PIN: reserved pads CTS, RTS
- Instructions for use: (to access the MCU as an example)
$6.66 $7.66
CHNT YBLX-ME8108 Limiter Travel Switches Micro Self-Resetting Stroke Switch
- Protection class: IP62
- Operating frequency: 20 times/minute
- Rated insulation voltage: 415V
- Rated shock withstand voltage: 2.5kV
- Rated voltage: AC380V/DC220V
- Rated operating current: AC0.8A/DC0.16A
- Environmental temperature: -5-40 degrees Celsius
- Action form: self-reset
$10.27 $12.22
CHNT YBLX-ME8111 Limiter Travel Switches Micro Self-Resetting Stroke Switch
- Protection class: IP62
- Operating frequency: 20 times/minute
- Rated insulation voltage: 415V
- Rated shock withstand voltage: 2.5kV
- Rated voltage: AC380V/DC220V
- Rated operating current: AC0.8A/DC0.16A
- Environmental temperature: -5-40 degrees Celsius
- Action form: self-reset
$10.27 $12.73
CHNT YBLX-ME8122 Limiter Travel Switches Micro Self-Resetting Stroke Switch
- Protection class: IP62
- Operating frequency: 20 times/minute
- Rated insulation voltage: 415V
- Rated shock withstand voltage: 2.5kV
- Rated voltage: AC380V/DC220V
- Rated operating current: AC0.8A/DC0.16A
- Environmental temperature: -5-40 degrees Celsius
- Action form: self-reset
$10.27 $12.02
CHNT YBLX-ME8166 Limiter Travel Switches Micro Self-Resetting Stroke Switch
- Protection class: IP62
- Operating frequency: 20 times/minute
- Rated insulation voltage: 415V
- Rated shock withstand voltage: 2.5kV
- Rated voltage: AC380V/DC220V
- Rated operating current: AC0.8A/DC0.16A
- Environmental temperature: -5-40 degrees Celsius
- Action form: self-reset
$10.27 $12.84
