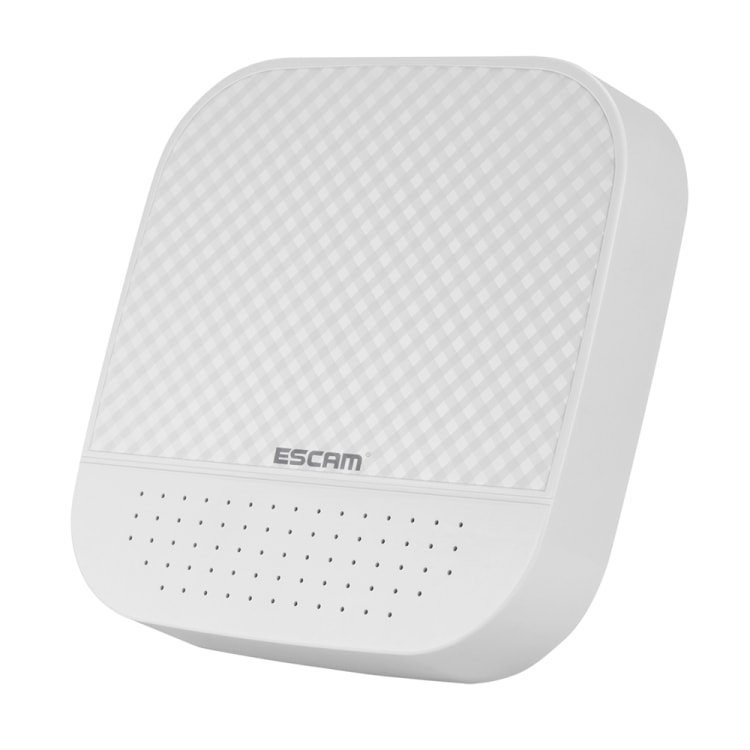

ESCAM PVR204 1080P 4CH+2CH ONVIF NVR Digital Video Recorder with 2CH Cloud Channel for IP Camera System (White)

SKU: 06-0256494

Support output VGA and HDMI 1080P simultaneously.
Support Max.6ch preview, 4ch playback; Add 2ch cloud channel can add ESCAM IP camera with private protocol remotely.
Single picture support Max. 2MP main-stream, 4 pictures support max. 4*1.3MP mainstream
Support HDMI audio output.
Support preview snapshot and playback snapshot.
Use time chart to display playback, use color to show record type, it's convenient to retrieve video information.
You can backup the record according to the occurrence time and duration, even for seconds.
Camera's IP address can be modified in bulk, cameras can be added remotely.

$19.59

$23.90

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. Support output VGA and HDMI 1080P simultaneously.
2. Support Max.6ch preview, 4ch playback; Add 2ch cloud channel can add ESCAM IP camera with private protocol remotely.
3. Single picture support Max. 2MP main-stream, 4 pictures support max. 4*1.3MP mainstream
4. Support HDMI audio output.
5. Support preview snapshot and playback snapshot.
6. Use time chart to display playback, use color to show record type, it's convenient to retrieve video information.
7. You can backup the record according to the occurrence time and duration, even for seconds.
8. Camera's IP address can be modified in bulk, cameras can be added remotely.
9. Can connect with IP camera, support various Onvif version.
10. Can connect with main brand IPC (private protocol and standard ONVIF).
11. Preview channel position can be switched freely; MAC address doesn't change, convenient for installing.
12. The backup record and picture via U-disk can playback on NVR, much more convenient.
13. Support various playback modes, fast forward, slow playback, fast backward, etc. Max 16X fast forward and fast backward.
14. Support WEB, VMS, android/iOS mobile app.
15. Support P2P, QR scan and playback via mobile app.

Specifications

Media Format
Video Compression Format	H.264
Audio Compression Format	G.711U
NVR
NVR Model	PVR204
System	Operating system: Embedded LINUX OS
Recording	Backup mode: Support HDD, USB flash disk store & backup Frame rate: 30 fps NTSC, 25fps PAL
Record Mode	Manual, motion detection, Time
Video	720P 960P 1080P
NVR Interface	1 x VGA, 1 x HDMI, 1 x RJ45, 1 x DC Jack, 2 x USB 2.0
Video input	4ch
Video interface	Video output: 1ch VGA and 1ch HDMI
Network	RJ45 10/100M Ethernet
USB Port	2 x USB
HDD	SATA HDD (not included), Max 6TB / PER
Mobile Surveillance	Smartphone (iPhone, Android)
PC Surveillance	Support IE and VMS remote surveillance
Power consumption	15W
Physical Environment
Operate Temperature	-10 to 55 Degree Celsius
Working Humidity	10 to 95 percent
Dimensions
Size	21020940mm
Weight	436g
Package Include
Package Contents	1 x Mounting Accessories 1 x Power Adapter (US, UK, EU, AU Optional) 1 x NVR 1 x User Manual

Packing List

ESCAM PVR204 1080P 4CH+2CH ONVIF NVR Digital Video Recorder with 2CH Cloud Channel for IP Camera System (White)
Original set and packaging
