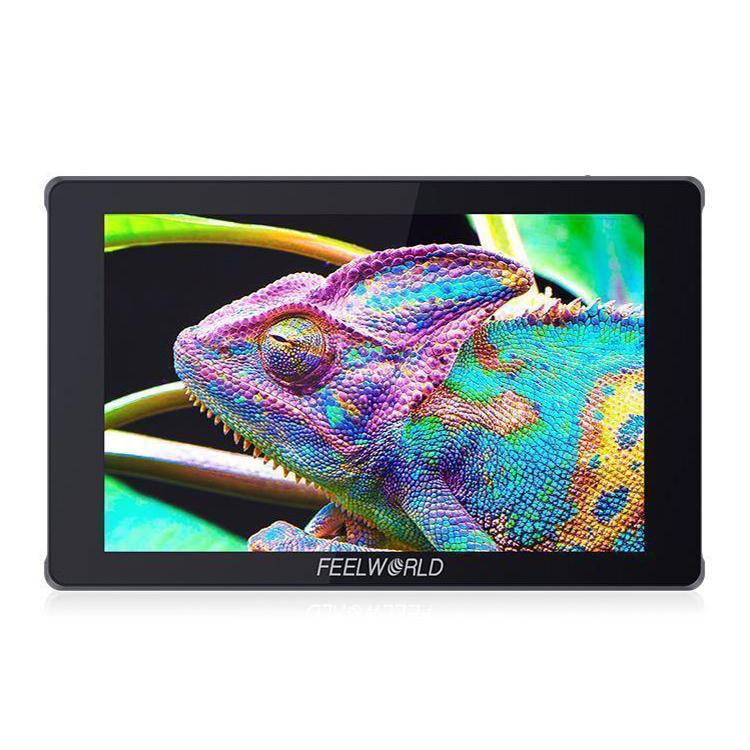

FEELWORLD F7 PLUS 7 inch DSLR Camera Field Monitor Touch Screen 4K HDMI High Brightness 1200nit Monitor (Black)

Be the first to review this product

SKU: 06-0231143

Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
Waveform (RGB, YUV, Y)
HDR
Vector
Histogram (RGB1, RGB2, Y)
Embedded Audio
Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
False Colors (Normal, ARRI)

$288.09

$354.35

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB1, RGB2, Y)
6. Embedded Audio
7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10RE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Grid (2x2, 3x3, 4x4, 5x5, 6x6,7x7, 8x8,9x9, Custom)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
14. Image Flip ( H Flip, V Flip, H_V Flip )
15. Image Freeze
16. Center Marker
17. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
19. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
20. Marker Color (Red, Green, Blue, Black, White, Gray)
21. User Switch (1-4)
22. Zoom Mode (2X, 4X, 9X, 16X, User)
23. Pixel to Pixel
24. Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100)
25. Display Range(Auto, Limit, Full)
26. Built-in fan(can be adjustable 1~5)
27. Color Temp. ( 5600K, 6500K, 9300K, User. Under the "user", the red, green, and blue values of the image can be adjusted 0~255)
Specifications
Display Spec.
1. Model: F7 PLUS
2. Screen Size: 7 inch IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 1200cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)
Input
1. 1 x HDMI: HDMI 2.0
2. 1 x DC: DC IN 12V (suitbale for Barrel DC 5.5 x 21mm power plug)
3. 1 x USB: 5V Type-C (please use 5V/2A or more than 2A Type-C power supply)
4. 1 x SD: SD Card Slot (Firmware update/LUT file upload)
Output
1. 1 x HDMI: HDMI 2.0
2. 1 x DC: DC OUT 8V (suitbale for Barrel DC 5.5 x 21mm power plug)
Audio
Audio: 3.5mm Stereo Headphone
HDMI Input/ Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840 x 2160p (60/50/30/29.97/25/24/23.98)
6. 4096 x 2160p (60/50/30/29.97/25/24/23.98)
General:
1. Input Voltage: DC 7-24V
2. Power Consumption: Less than or equal to 15W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C
5. Install Way: 1/4 inch -20 Thread Socket (right, top, bottom)
6. Unit Size: 186x117x21(mm)
7. Unit Weight: 389g
Package List
1. Main unit monitor x 1
2. Micro HDMI cable x 1
3. HDMI cable x 1
4. Snail gimbal + wrench x 1
5. Disassembly wrench x 1
6. Instruction manual x 1

Packing List

FEELWORLD F7 PLUS 7 inch DSLR Camera Field Monitor Touch Screen 4K HDMI High Brightness 1200nit Monitor (Black)
Original set and packaging
