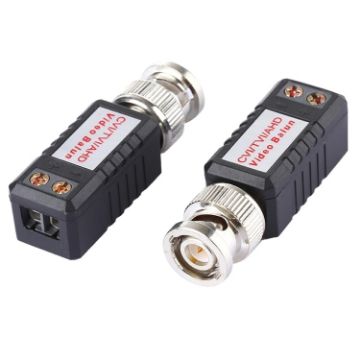

2 PCS HD 202E Enhanced Version Coaxial CVI/TVI/AHD 1CH Passive Transceiver Video Balun

$8.41 $10.26

$8.41 $10.18

$5.56 $6.56

Adopt differential signal transmission with excellent anti-jamming ability
Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
Full-motion CCTV video at distance up to 330m when used with any passive UTP video transceiver
Up to 1500m with any active UTP video receiver
No power required
Built-in transient suppression protection
Frequency response: DC-8MHz
CMRR (Common mode rejection ratio): 60dB

$8.85 $10.89

Full-motion CCTV video at distances up to 330m when used with passive transceiver
Up to 1500m with any active UTP video receiver
NTSC / PAL and SECAM video formats
No power required
60 dB crosstalk and noise immunity
Compact size and easy installation
Technical specifications
Feuquency response: DC to 8MHz

$6.79 $8.08

Adopt differential signal transmission with excellent anti-jamming ability
Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
Full-motion CCTV video at distance up to 330m when used with any passive UTP video transceiver
Up to 1500m with any active UTP video receiver
No power required
Built-in transient suppression protection
Frequency response: DC-8MHz
CMRR (Common mode rejection ratio): 60dB

$19.72 $23.27

Cable distance: Up to 2000ft transmitter-receive UTP cat 5E or better. Point to point transmission of real-time PAL / NTSC or SECAM CVBS video signal
Video frequency response: DC TO 6 MHz
Common-mode / differential-mode reiection: 15KHz to 5KHz, 55dB typical
Line impedance: female / male BNC 75ohms, CAT5 line, terminal 100ohms
Wire type: One unshielded twisted pair 24-16 AWG (0.5-1.31mm), category type cat 5 or better. Impedance 100+/-20ohms
DC loop resistance 52ohms per 1000ft (18ohms per 100m)
Differential capacitance 19pF/ft max (62pF/m max)
Power supply: No external power required

$10.61 $13.05

HD video balun is to convert the video signal into the balanced signal applicable to transimitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit for channels of video image simultaneously on an 8 cores cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity
Compatible with all HD-CVI, HD-TVI, HD-AHD.
Up to 450m for 720P CVI Cameras.
Up to 250m for 1080P CVI Cameras.
Up to 250m for 720P/1080p TVI Cameras.
Up to 320m for 720P AHD camera.
Up to 250m for 1080P AHD camera.
NTSC, PAL, and SECAM video formats.

$13.24 $15.36

Compatible with CVI 1080P, TVI 720P/1080P, AHD 720P/1080P, it's not suitable for CVI 720P
BNC male to BNC female with mini cable 18cm on both sides
Passive,no power required
Prevent video-signal distortion caused by video ground loops
Eliminates picture tearing, cross talk and rolling
Prevent power cables laid bu others interfering with the cctv system
Built in video filter, perfect to work with dvr to immunity dvr interference, for interference rejection
Built in TVS(Transient Voltage suppressors) for surge protection.

$12.52 $14.90
