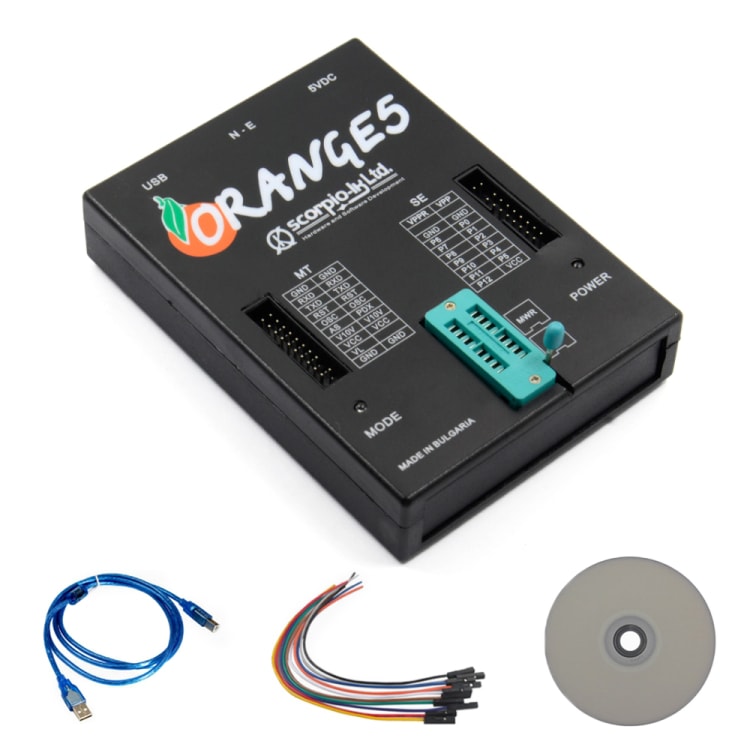

Orange5 V1.34 Professional Programming Device Main Unit

Be the first to review this product

SKU: 06-0223149

Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks

$81.18

$95.79

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews

Features

1. Supports any COM ports, incuding virtual ones from 1 to 20
2. Works with text (ASCII) and HEX mode
3. Creating a list of commands that allows editing and fast sending
4. Fine-tuning the exchange rate
5. Saving files including command and port settings.
6. Saving incoming data in binary files
7. File transfer via serial port.
8. Delay settings for bytes and blocks
9. Echo mode
10. Delay settings between incoming data
11. Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
12. Program does not need to be installed
13. Supports Orange5 programmer in emulation mode.
14. Software License:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
15. Technical Info:
USB power supply (USB2.0/3.0)
Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets
Two expansions compatible with Orange4 and Omega MTRK
Protection against overcurrent
Overload voltage protection
Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [Win8.1]
Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.
Software Version: V1.34
Language: Chinese, English and Russian
Systems: XP WIN7 WIN8

Packing List

Orange5 V1.34 Professional Programming Device Main Unit
Original set and packaging
