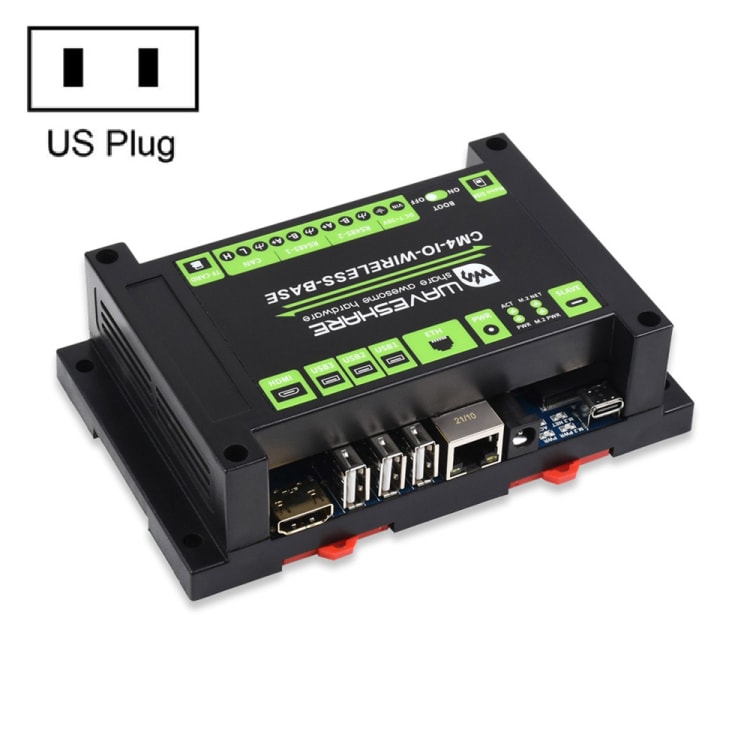

Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4 (US Plug)

SKU: 06-0149893

About The Protuct
This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.
CM4 socket: For all variants of Compute Module 4
Networking:
Gigabit Ethernet RJ45
M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication

$108.84

$131.70

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

About The Protuct
This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.
Specifications
1. CM4 socket: For all variants of Compute Module 4
2. Networking:
- Gigabit Ethernet RJ45
- M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
- Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB: USB 2.0 x 3
4. PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins
5. Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector)
6. Video: HDMI x 1, support 4K 30fps output
7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
9. Fan header: 5V/12V, allows speed adjustment and measurement
10. Power input: 5V or 7~36V
11. Dimensions: 145 x 90 x 40mm
Package List
1. CM4-IO-WIRELESS-BASE x 1
2. PCIe to 4G/LoRa adapter x 1
3. Screwdriver x 1
4. Screws pack x 1
5. 12V 2A power adapter x 1

Packing List

Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4 (US Plug)
Original set and packaging
