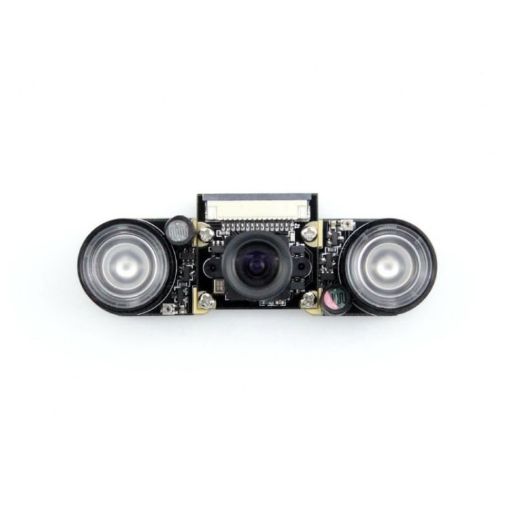

Waveshare RPi Camera (F) Adjustable-Focus Camera Module, Supports Night Vision

SKU: 06-0197742

$22.15

$25.47

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
1. Raspberry Pi Night Vision Camera, supports all revisions of the Pi
2. 5 megapixel OV5647 sensor
3. Adjustable focus distance
4. Camera specifications
- CCD size: 1/4inch
- Aperture (F): 1.8
- Focal Length: 3.6mm
- Angle of View (diagonal) : 75 degree
- Sensor best resolution : 1080p
5. 4 screw holes
- Used for attachment
- Provide 3.3V power output
- Support connecting infrared LED and/or fill flash LED
6. Dimension : 25mm x 24mm
Package Contents
1. RPi Camera (F) x1
2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Packing List
