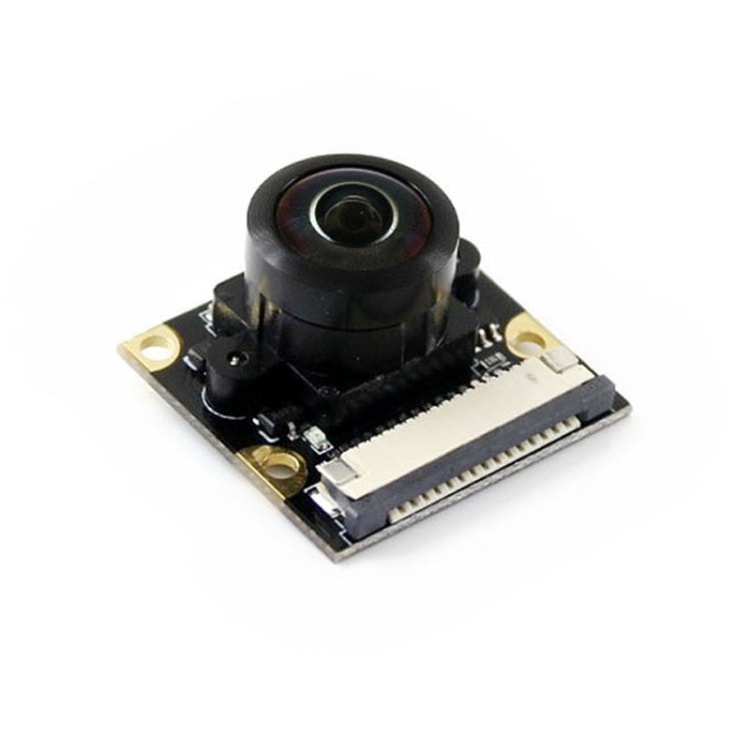

Waveshare RPi Camera (M) Fisheye Lens Module

SKU: 06-0197738

Raspberry Pi Camera, supports all revisions of the Pi
Fisheye Lens, offers wider field of view
5 megapixel OV5647 sensor
Adjustable focus distance
Camera specifications
CCD size : 1/4inch
Focal Length : 0.87mm
Angle of View (diagonal) : 200 degree (while other normal cameras are typically 72 degree)

$30.79

$36.33

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features
1. Raspberry Pi Camera, supports all revisions of the Pi
2. Fisheye Lens, offers wider field of view
3. 5 megapixel OV5647 sensor
4. Adjustable focus distance
5. Camera specifications
- CCD size : 1/4inch
- Focal Length : 0.87mm
- Angle of View (diagonal) : 200 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
6. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting fill flash LED
7. 2592 1944 still picture resolution
8. Support 1080p30fps , 720p60fps and 640x480p60/90fps video record
9. Dimension: 25mm x 24mm
Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Package Contents
1. RPi Camera (M) x1
2. 15-pin FFC (opposite sides contact) x1

Packing List
