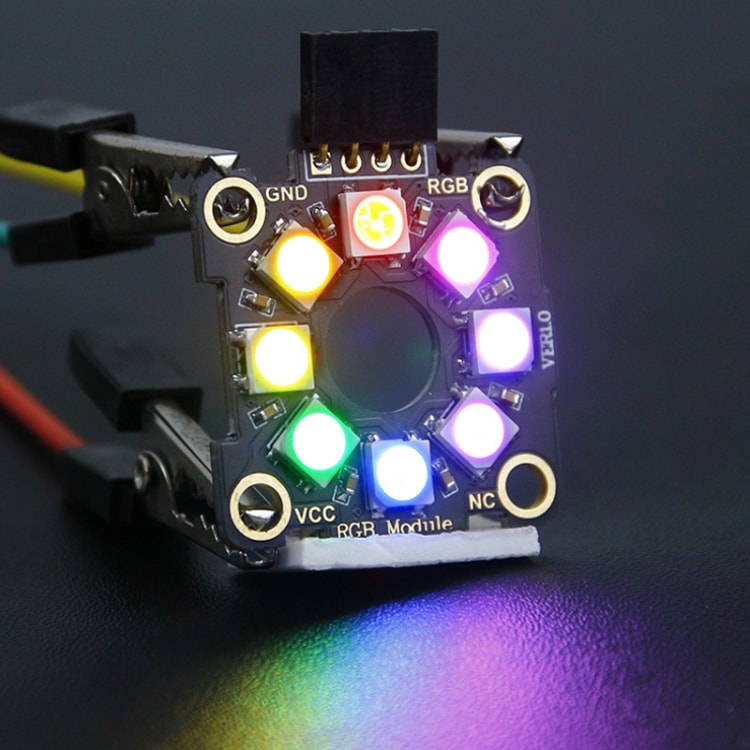

Yahboom 8-bit Full-color RGB Light Ring Module Microbit Raspberry Pi Pico Development Board

SKU: 06-0148320

VCC: power supply interface, can be connected to 3.3V, 5V
GND: ground
RGB: signal input
NC: empty interface, no connection required
Working voltage: 3.3V/5V
Module size: 28.7x30mm
RGB lamp model: TX1812C
Interface mode: crocodile clip interface, DuPont line interface, PH2.0 cable interface

$8.69

$10.86

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

1. VCC: power supply interface, can be connected to 3.3V, 5V
2. GND: ground
3. RGB: signal input
4. NC: empty interface, no connection required
5. Working voltage: 3.3V/5V
6. Module size: 28.7x30mm
7. RGB lamp model: TX1812C
8. Interface mode: crocodile clip interface, DuPont line interface, PH2.0 cable interface
9. The module comes with 8 RGB lights and supports three connection methods: crocodile clips, Dupont wires, and PH2.0 wires
10. The user can control it to change into any color through programming to realize the effects of water lamp, marquee lamp, breathing lamp, etc.
11. Tutorial materials for Micro:bit, Arduino, and Raspberry Pi will be provided for user reference
12. The module is composed of 8 programmable RGB lights. RGB lights are independently addressable full-color light sources combined by integrated circuits and LEDs. Each color of R (red), G (green), and B (blue) is divided into 256 levels of brightness. It has the characteristics of small size, high brightness, programmable, and colorful lights. It is often used in lighting decorations, festival lights, and project indicators

Packing List

Yahboom 8-bit Full-color RGB Light Ring Module Microbit Raspberry Pi Pico Development Board
Original set and packaging
