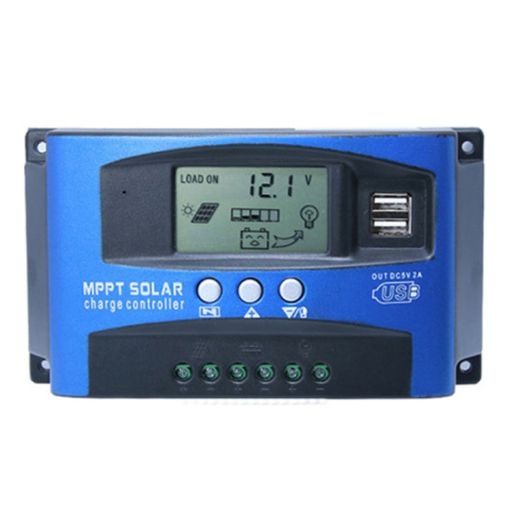

YCX-003 30-100A Solar Charging Controller with LED Screen & Dual USB Port Smart MPPT Charger, Model: 12/24/36/48/60V 100A

SKU: 06-0136960

Industrial -grade main control chip, 16 -level AD sampling accuracy, temperature, charging current, and discharge current accurately display, the power generation is clear at a glance.
Automatic focus on MPP tracking charging, high charging efficiency, continuously tested by the charging process, two -way focus tracking.
Large -screen LCD display, charging and discharge parameters can be adjusted, ultra -wide charging discharge can be adjusted. As long as you understand the battery characteristics setting its corresponding charging parameters, you can charge a battery at any. There are no adjustments in the market).
Complete 3 -stage charging management, effectively protect the battery, and the battery is more durable.
Built -in overheating, overcurrent, short circuit, opening protection, anti -connection protection, when the failure is eliminated, the controller automatically responds, and the device does not damage the device.
Put the two -way MOSS tube into the irrigation circuit, high -power charging mode, ultra -low heat.
Material: ABS+ROHS, electronic components
Rated voltage: 12V/24V

$34.24

$40.75

Availability: In stock

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Features

Features:
1. Industrial -grade main control chip, 16 -level AD sampling accuracy, temperature, charging current, and discharge current accurately display, the power generation is clear at a glance.
2. Automatic focus on MPP tracking charging, high charging efficiency, continuously tested by the charging process, two -way focus tracking.
3. Large -screen LCD display, charging and discharge parameters can be adjusted, ultra -wide charging discharge can be adjusted. As long as you understand the battery characteristics setting its corresponding charging parameters, you can charge a battery at any. There are no adjustments in the market).
4. Complete 3 -stage charging management, effectively protect the battery, and the battery is more durable.
5. Built -in overheating, overcurrent, short circuit, opening protection, anti -connection protection, when the failure is eliminated, the controller automatically responds, and the device does not damage the device.
6. Put the two -way MOSS tube into the irrigation circuit, high -power charging mode, ultra -low heat.
Product parameters:
1. Material: ABS+ROHS, electronic components
2. Rated voltage: 12V/24V
3. Rated current: 30A-100A
4. Power consumption: 360w-1200W
5. Charging current: 30A, 40A, 50A, 60A, 100A (optional)
6. usb output: 5V 2A
7. Safety protection: short -circuit protection, opening protection, overcurrent protection, overcharge, over -protection, anti -connection protection
8. Product size: 17 x 9.5 x 4.5 cm
9. Weight: 300 grams

Packing List

YCX-003 30-100A Solar Charging Controller with LED Screen & Dual USB Port Smart MPPT Charger, Model: 12/24/36/48/60V 100A
Original set and packaging
